Introduction

From a single, intuitive interface, victor enables management of live and recorded video from all of Tyco Security Products.

  • Video Recorders;

    • Intellex DVRs

    • ADTVRs

    • VideoEdge NVRs

    • exacqVision

  • Integrations

  • Unification with C·CURE 9000, allowing unified control and monitoring of your entire security system

victor supports advanced, centralized custom operator accounts, enabling management of roles and privileges for different clients, right from the victor interface.

For more information on all versions of victor, documentation, data sheets, specifications and more, visit: https://www.americandynamics.net/Products/Video_Management_Systems.

victor's complete and scalable portfolio of clients offers a solution that is right for any business, of any size.

https://youtu.be/peLh7GDwipQ

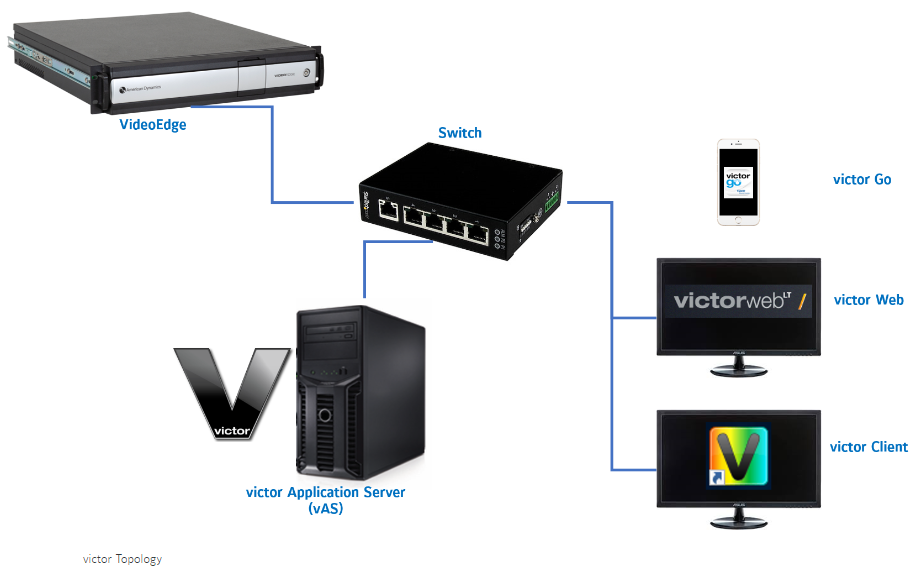

victor Topology

A typical network topology of how victor connects to a VideoEdge, Cameras and external storage

Types of victor Deployment

There are three different deployments for victor:

  • victor Express

  • victor Professional

  • victor Enterprise

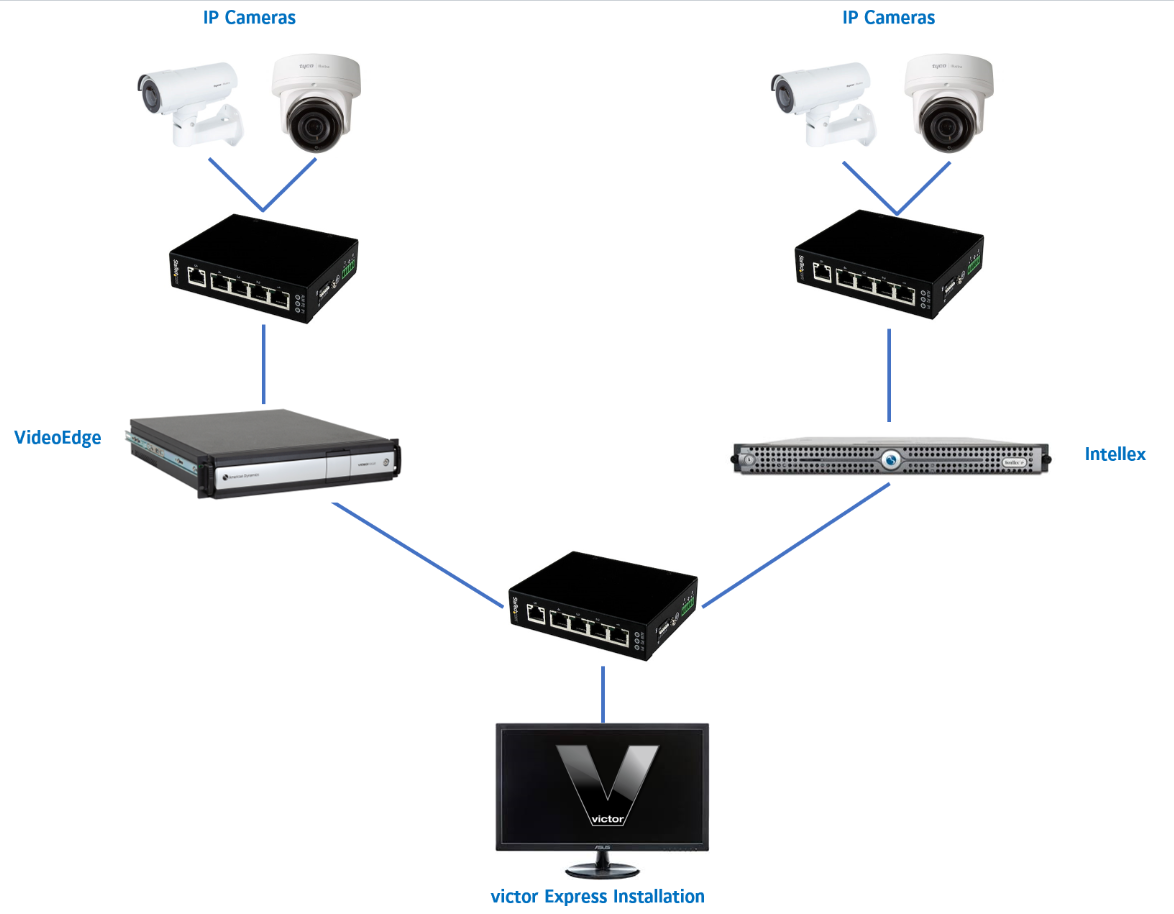

victor Express

victor Express offers the ability to manage live and recorded video from multiple Intellex DVRs and VideoEdge NVRs through the victor interface. victor Express uses SQL Express Localdb to store data.

victor Express is limited:

  1. 1 client connection; it does not support features which rely on multiple clients being connected (for example, video wall).

  2. Does not support integrations or Unification with C·CURE 9000.

  3. It is limited to 100 Intellex and 30 VideoEdge recorders

victor Express can be upgraded to victor Professional.

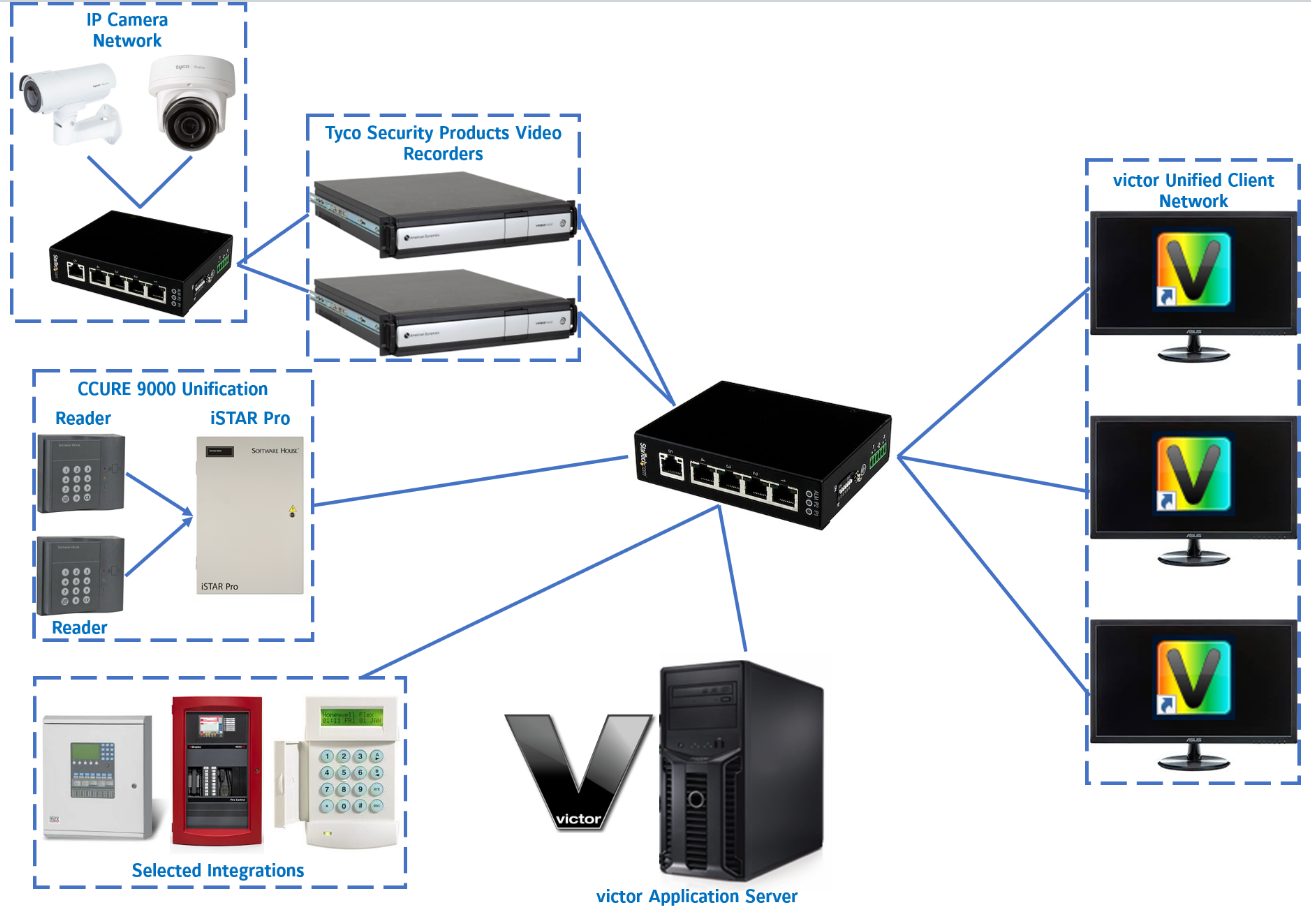

victor Professional

victor Professional enables management of live and recorded video from all Tyco Security Products video recorders (Intellex DVRs, ADTVRs, VideoEdge NVRs and exacqVision). victor Professional also supports integration of supported third party devices (for example, Fire Panels, Intrusion systems) and Unification with the C·CURE 9000 access control system, enabling monitoring and control of your entire security system from the single victor interface.

victor Professional uses victor Application Server to manage data. victor Application Server is an industry standard Microsoft SQL Server database and as such, can be hosted either on the local client machine or remotely, enabling scalability to suit your business.

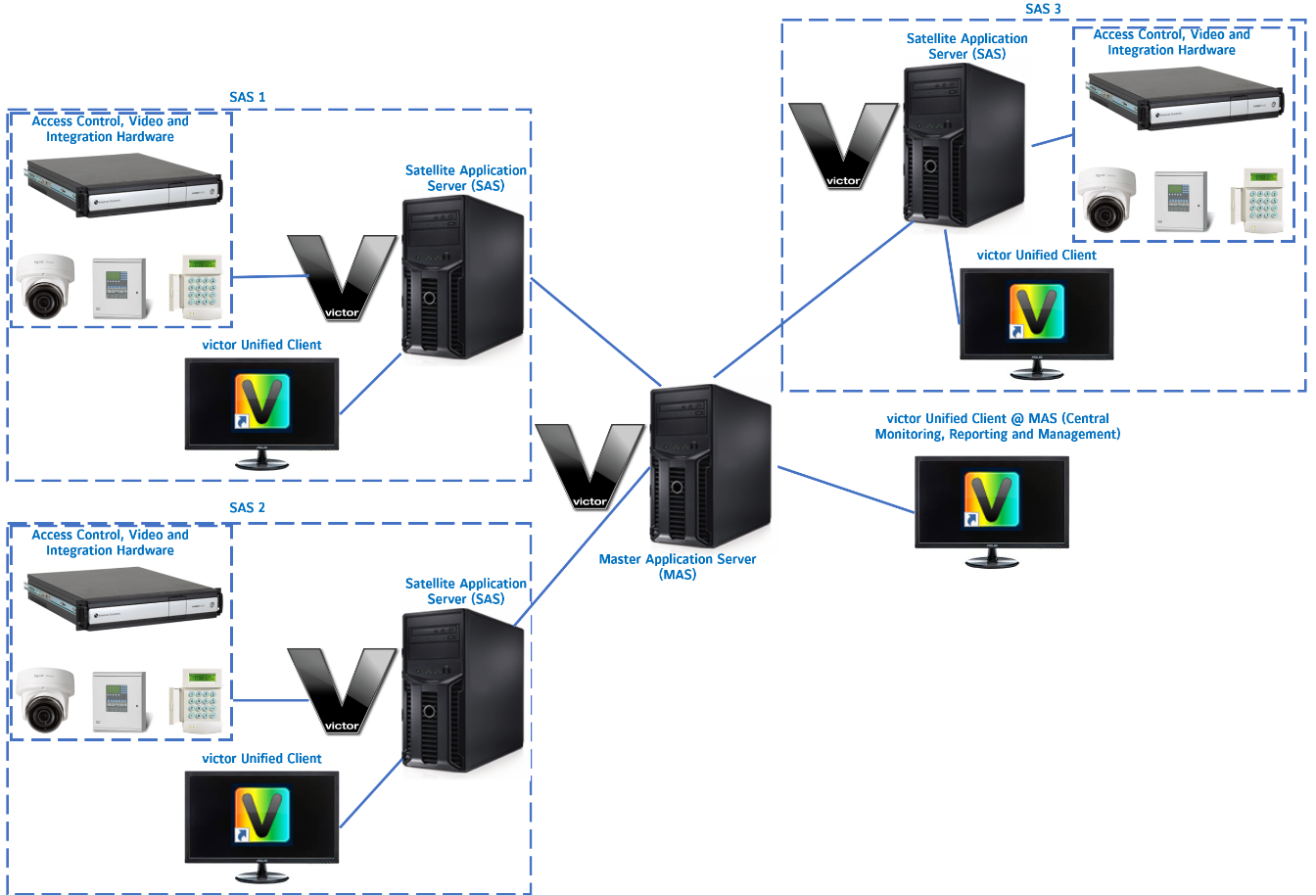

victor Enterprise

victor Enterprise is suitable for users with large, dispersed systems and supports enterprise deployments. Enterprise architecture supports a Master Application Server (MAS) which synchronizes data with up to 40 Satellite Application Servers (SAS). From the MAS, you can view and manage all aspects of the unified security system, as well as rolled-up reporting and event management for the entire enterprise.

Enterprise deployments are typically 'Hub and Spoke' with the MAS at the hub and SAS's forming the globally deployed spokes.
